Pipe Bursting vs. Pipe Lining: Which Trenchless Method Does Your Home Need?

A failing underground sewer line creates immense stress for any homeowner. Wet spots on the lawn, persistent indoor drain backups, or foul odors signal structural trouble beneath the surface. Digging up an entire yard to replace damaged lines causes extensive damage to landscaping, driveways, and sidewalks.

Fortunately, modern underground plumbing methods allow homeowners to address deep structural issues without destroying surrounding property. We at Sewer Pro use advanced underground repair methods to address severe pipe deterioration quickly. Homeowners seeking reliable solutions often turn to trenchless pipe bursting in Gahanna, OH to restore structural integrity to buried lines.

Understanding Cured-In-Place Pipe Lining

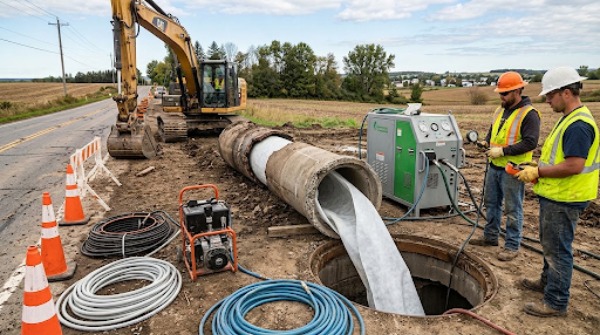

Cured-in-place pipe lining creates a brand new pipe directly inside an existing host pipe. This process relies on a flexible tube made of woven polyester felt or fiberglass. Before installation begins, a technician performs a thorough video inspection using a specialized camera attached to a push cable. This inspection verifies the internal condition of the line, identifies blockages, and measures exact dimensions. After video inspection, high-pressure water jetting cleans away built-up debris, scale, and tree root intrusions to clear the interior walls completely.

Once cleaning finishes, technicians saturate the felt liner with a high-strength liquid epoxy resin. An air launcher or water column forces the saturated resin liner into the damaged pipe, turning it inside out so the resin-coated side presses firmly against the original pipe walls. The resin must cure to form a hard, seamless structural wall inside the old line.

Two primary methods handle the curing stage: steam curing and ultraviolet curing. Steam curing routes hot steam through the inflated tube to heat the epoxy resin, causing a chemical reaction that thickens and hardens the material over several hours. Ultraviolet curing passes an array of high-intensity ultraviolet lights through the inflated tube. The chemical structure of UV-reactive resin reacts to specific light wavelengths, hardening the material in a fraction of the time required by steam methods. Both curing techniques result in a jointless, corrosion-resistant pipe sleeve.

Structural liners accommodate a broad range of pipe diameters, covering underground lines from 2 inches up to 18 inches. Industry testing under ASTM F1216 standards shows that properly installed cured-in-place pipe lining achieves a minimum 50-year lifespan. The new resin wall resists root invasion, chemical corrosion, and ground movement while preserving internal hydraulic capacity.

How Pipe Bursting Restores Damaged Lines

When an existing underground pipe experiences complete collapse, severe offset joints, or heavy crushing, lining may not provide a viable path forward. Heavy structural destruction requires physical replacement of the line. Modern pipe bursting systems break apart the damaged line while simultaneously pulling a new, high-density polyethylene pipe into the exact same space.

This method typically requires two small access points, although the exact setup can vary by property. Technicians set up an insertion pit where the new pipe enters the ground and a receiving pit where pulling equipment operates. A heavy steel cable passes through the old pipe from the receiving pit to the insertion pit and attaches to a specialized conical bursting head.

As a hydraulic winch pulls the cable, the expandable bursting head moves through the old pipe. The expanding head fractures the old clay, cast iron, or PVC pipe, pressing the broken pieces outward into the surrounding soil. At the same time, the rear of the bursting head hauls a continuous line of high-density polyethylene pipe directly behind it.

Working with an experienced pipe bursting contractor allows property owners to resolve structural line collapses efficiently. High-density polyethylene features fused joints, creating a continuous line that resists ground shifting and root pressure. Standards established by the American Society of Civil Engineers highlight high-density polyethylene as a durable material capable of delivering reliable service for over 50 years under standard earth loads.

Step-by-Step Breakdown of Trenchless Line Replacement

Understanding the physical steps involved in underground pipe renewal helps property owners visualize the installation process. Each phase follows strict technical standards to ensure long-term structural success.

Step 1: Diagnostic Video Inspection

A high-resolution optical camera travels down the sewer line to map structural defects, measure pipe length, and identify access points.

Step 2: Line Preparation and Cleaning

Hydro-jetting equipment uses high-pressure water to remove interior buildup, grease, and root blockages.

Step 3: Equipment Calibration and Entry Creation

Technicians prepare access points and assemble appropriate pulling rigs, resin inversion tanks, or hydraulic power units.

Step 4: Installation Execution

Technicians insert resin-impregnated felt liners for lining projects or pull bursting heads with high-density polyethylene pipe for structural replacement projects.

Step 5: Material Curing or Pipe Fusion

Hot steam or UV light arrays cure resin liners, while thermal butt-fusion connects high-density polyethylene pipe segments seamlessly.

Step 6: Final Quality Verification Inspection

A camera travels through the finished pipe to verify wall thickness, alignment, and full joint integration.

Choosing professional pipe bursting services guarantees that heavy equipment operates within precise safety parameters throughout each phase.

Materials Used in Modern Sewer Line Reconstruction

Material quality dictates how well an underground pipe withstands ground pressure, soil chemistry, and daily water flow. Underground pipe rehabilitation relies on advanced polymer materials engineered for high durability.

Epoxy resin serves as the primary bonding agent in pipe lining. Epoxy formulas resist acids, industrial chemicals, and biological growth found in municipal waste lines. When mixed with hardeners, epoxy creates a dense, non-porous wall that bonds tightly with host pipe materials like cast iron, clay, or concrete.

Flexible felt liners consist of synthetic polyester fibers that absorb liquid epoxy evenly throughout their structure. The outer surface features a thin polyurethane or polyvinyl chloride coating that prevents resin leakage during inversion and allows air pressure to expand the liner against the pipe walls.

High-density polyethylene forms the core material for structural line replacements. This thermoplastic material offers high impact strength, flexibility, and resistance to environmental stress cracking. Thermal fusion joins pipe sections together, forming a jointless conduit stronger than the original material.

Selecting an established pipe bursting sewer line replacement approach ensures that replacement lines meet rigorous structural load requirements set by municipal utilities.

Environmental and Structural Advantages of No-Dig Solutions

Preserving existing landscapes represents a key advantage of modern pipe repair techniques. Traditional open-cut excavation removes hundreds of cubic feet of soil, destroys flower beds, and breaks concrete driveways. Trenchless techniques restrict physical disruption to small entry points, preserving topsoil layers and roots of mature trees.

Ground displacement remains minimal during trenchless installations. Surrounding soil compaction stays stable because technicians do not remove supporting dirt around the pipe zone. This stability prevents subsequent soil settling, pavement sinking, or foundation shifts near the repair area.

Energy consumption during trenchless repairs remains lower than traditional excavation. Heavy diesel excavators and dump trucks operate for far shorter durations, lowering overall carbon emissions at the work site. The speed of completion also reduces disruption to neighborhood traffic and routine household activities.

Working with a reliable pipe bursting contractor gives homeowners access to efficient repair methods that protect lawn structures and reduce installation timelines significantly.

Frequently Asked Questions

Q: What determines whether a pipe needs lining or bursting?

A: Lining works best when the existing pipe retains its structural shape with localized cracks or root intrusion. Bursting is required when a pipe has completely collapsed, lacks structural support, or requires an increase in diameter size.

Q: How long does a trenchless sewer repair take to complete?

A: Most residential trenchless installations finish within a single day, minimizing disruption to household water utility service.

Q: Will tree roots penetrate a newly lined or burst sewer pipe?

A: High-density polyethylene and cured epoxy resin form continuous, jointless structures that help prevent tree roots from entering through cracks and pipe joints.

Q: Are trenchless pipe materials approved by municipal codes?

Trenchless installation materials are designed to meet applicable ASTM standards and local building requirements.

At Sewer Pro, our trenchless technology specialization delivers reliable, long-term pipe restoration across an expansive Ohio footprint. We serve residential, commercial, and municipal pipe projects, applying cost-effective innovation to every job. Our real-time visual transparency keeps property owners informed through clear camera inspections, while our standard 50-year service guarantee provides enduring confidence in every completed installation.

Ready to resolve your underground pipe issues without tearing up your lawn? Contact our team and get started today!
